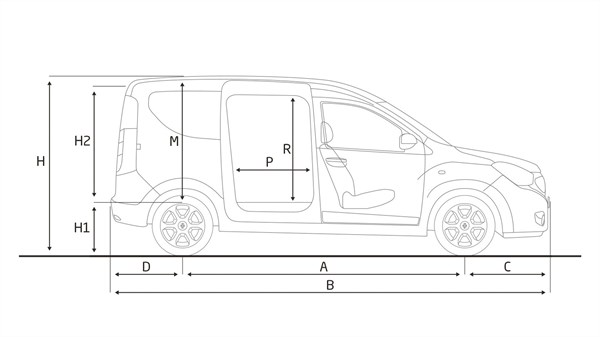

A
| Wheelbase | 2,810
|
B | Overall length | 4,363
|
C | Front overhang | 822 |
D | Rear overhang | 731 |

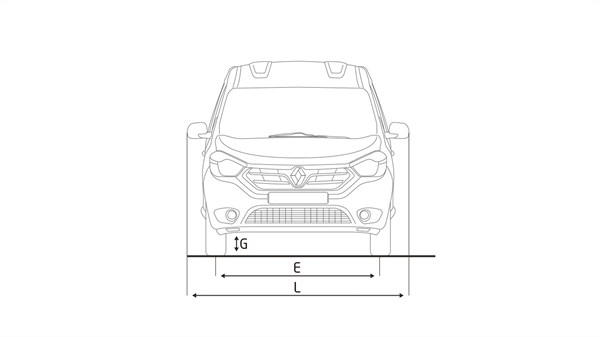

E
| Front track | 1,490
|
F
| Rear track | 1,478
|
G | Unladen / laden ground clearance | 186/151
|
H | Unladen height without/with roof bars | 1,809/1,847
|
H1
| Sill height (unladen) | 565
|
H2
| Rear opening height | 1,100
|
L | Overall width with rearview mirrors | 2,004
|

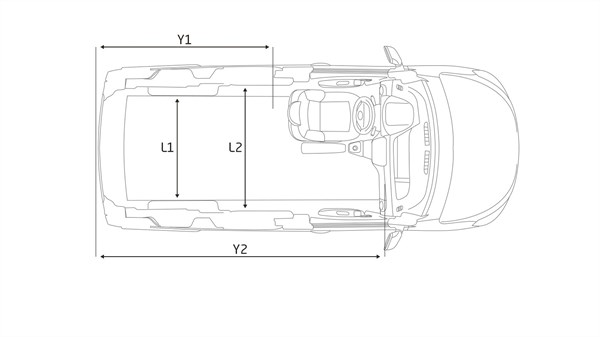

L1 | Interior width between wheel arches (with/without panels) | 1,130/1,170
|
L2
| Maximum loading width (without panels) | 1,372/1,413
|
M | Maximum loading height | 1,271
|

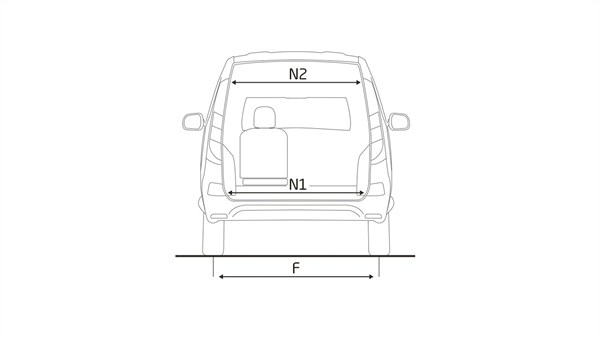

N1 | Lower boot entrance width (at sill level) | 1,189
|
N2 | Rear opening width (1 m from the floor) | 1,082
|
P | Opening width at sliding side door level | 703
|
R | Opening height at sliding side door level | 1,046
|
Y1 | Maximum loading length on floor with tubes/partition | 1,856/1,901
|
Y2 | Maximum loading length on floor with Easy Seat removed | 3,110
|
